Display + Driving Board
ICE with 7.8˝ ePaper Display Kits
$449.00
ADD TO FAVORITE
-
Description
ICE with 7.8'' ePaper display (VB3300-GHA) demo kit allows E Ink clients to access the hardware and software of E Ink’s 7.8'' black and white ePaper display module for evaluation. This kit demonstrates as a turnkey solution for those who are interested in designing with E Ink displays. Hardware and software design support is available from E Ink directly.
7.8'' display panel is suitable for various applications, e.g. e-reader application, etc…
-
Note
● This Kits include ePaper display and drivnig board
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
7.8˝ ePaper Display (VB3300-GHA)
Add to Cart
Added to Cart
Introduction
About This Item

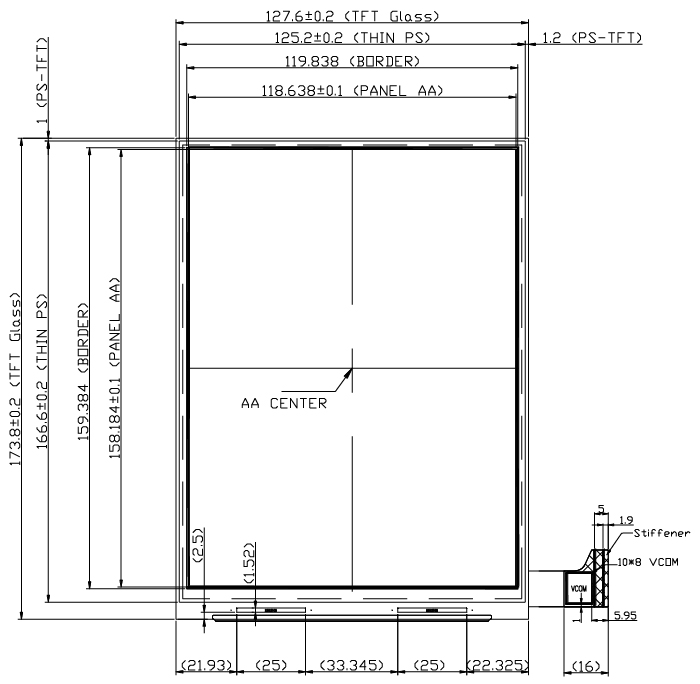

EPD Layout
Why should you choose ICE with 7.8” ePaper Display
● Accelerated design-in process
● Cost effective lay-out design as reference
● End-products adopt features of E Ink display, such as always-on, low power
consumption, sunlight readability, etc.
● Suitable for applications such as e-reader
● Hardware and software support from E Ink directly
What ICE with 7.8” display can do for you
● Demonstrate as a turn-key solution
● Loading and viewing custom images on 7.8˝ E Ink display
● Easy tryout on applications desired such as e-reader application
Features
● Easy installation
● 7.8˝ monochrome E Ink ePaper display
● Full reference design support directly from E Ink
● Common industry standard development environment
● Glass substrate
Package content
● EVK: TCON driving board
● ICE with 7.8˝ ePaper Display (VB3300-GHA)
● Mini USB cable
Specification
Product Information
Item
Specification
Model
VB3300-GHA
Size
7.8 inch
Resolution
1404 (H) × 1872 (V) pixel
Active Area
118.638 (H) × 158.184 (V) mm
Pixel Pitch
0.0845 (H) × 0.0845 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
127.6 (W) × 173.8 (H) × 0.78 (D) mm
Total Weight
36.9 ± 5 g
Gray Level
16
ppi
300
Backplane
Glass
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
Technical Documents
Download
Browsing online and downloading
